Introduction

Did you visit a workshop in another galaxy to make a hand built lightsaber? Do you wish that you could upgrade the electronics in your lightsaber? Then you have come to the right place. This custom designed chassis allows the purchaser to upgrade their lightsaber without any permanent modifications to the scrap metal required. This product will provide the instructions needed to make the necessary easily reversible modifications to the scrap metal switch pieces. Once the modifications have been completed the user can install the chassis. Once installed this upgraded chassis provides additional features to your lightsaber. This chassis allows the purchaser to continue along their journey of building a unique and customizable lightsaber. The chassis contains an electronics core that is powered by one of two different sound boards:

Available Sound Boards:

• Xenopixel V3
• Proffie V2.2

Features Available on Xenopixel V3 and Proffie V2.2 Sound Boards:

• Smooth Swing

• Lock Up Light Effect

• Tip Drag Light Effect

• Blaster Deflection Light Effect

• Flash on Clash

• Force Light Effect

• Infinite Blade Color Customization

• Ability to Add Custom Sound Fonts

• Smooth Ignition and Retraction Light Effects

• Utilizes a Neopixel Blade Enabling Additional Blade Animations

Requires Clear Scrap Metal Conversion Chassis:

• RGB Light coming from the Sleeve closest to the emitter (The Sleeve must have Vented / See Through Components in order for the light to be visible)

Features Specific to the Xenopixel V3 Sound Board

• Easier for Beginners
• Bluetooth Connectivity to Connect to a Personal Data Pad
• White light coming from Button Side (The Switch has to have Vented / See Through Components in order for the glowing to be visible)

Features Specific to the Proffie V2.2 Sound Board

• Provides Finer Control and Customization
• Some features require the user to Flash and Program the Proffie Board using Arduino IDE
• Ability to Program New Blade Styles using ProffieOS
• RGB light coming from Button Side (The Switch has to have Vented / See Through Components in order for the glowing to be visible)

 Product Contents

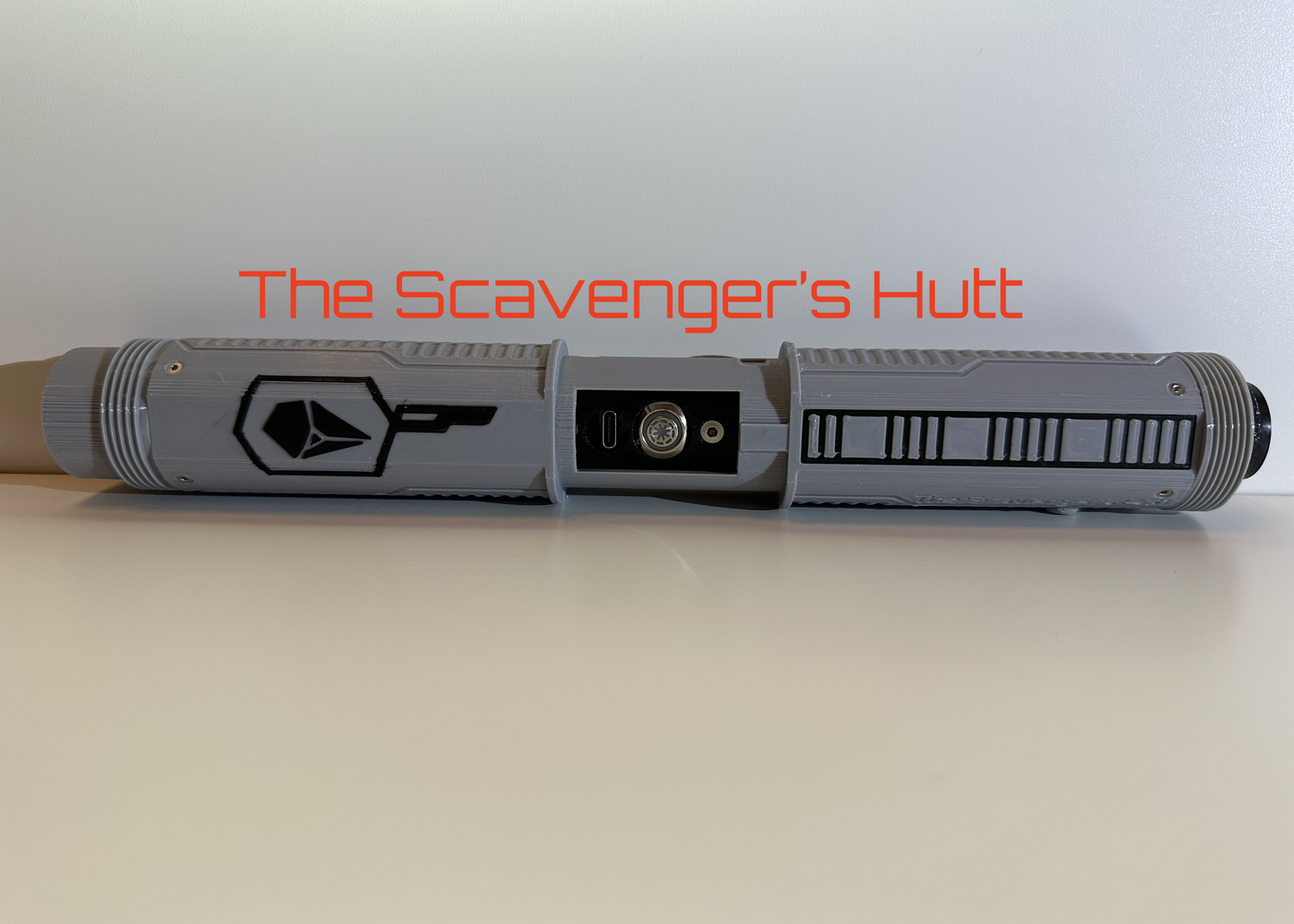

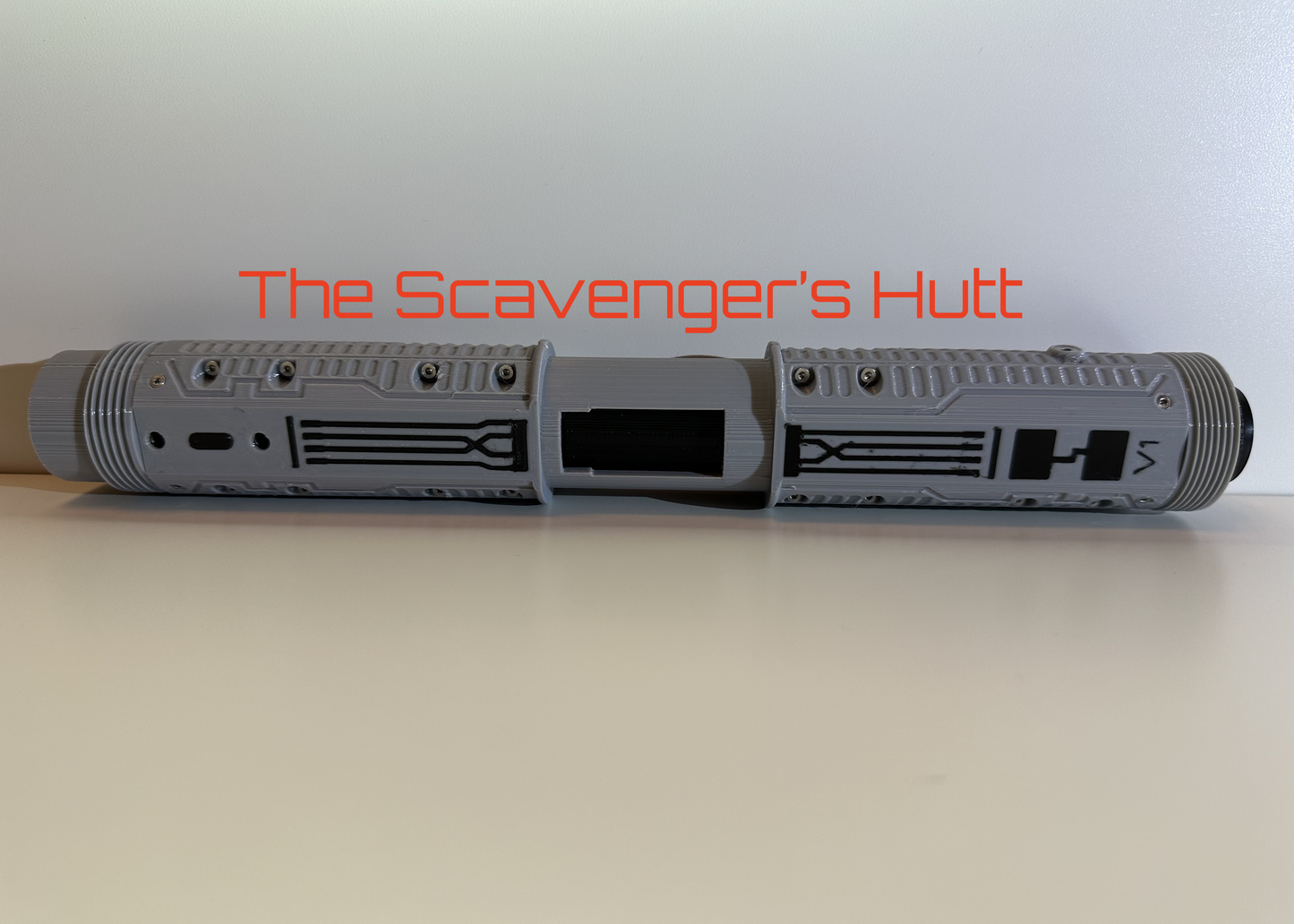

• Scrap Metal Conversion Chassis

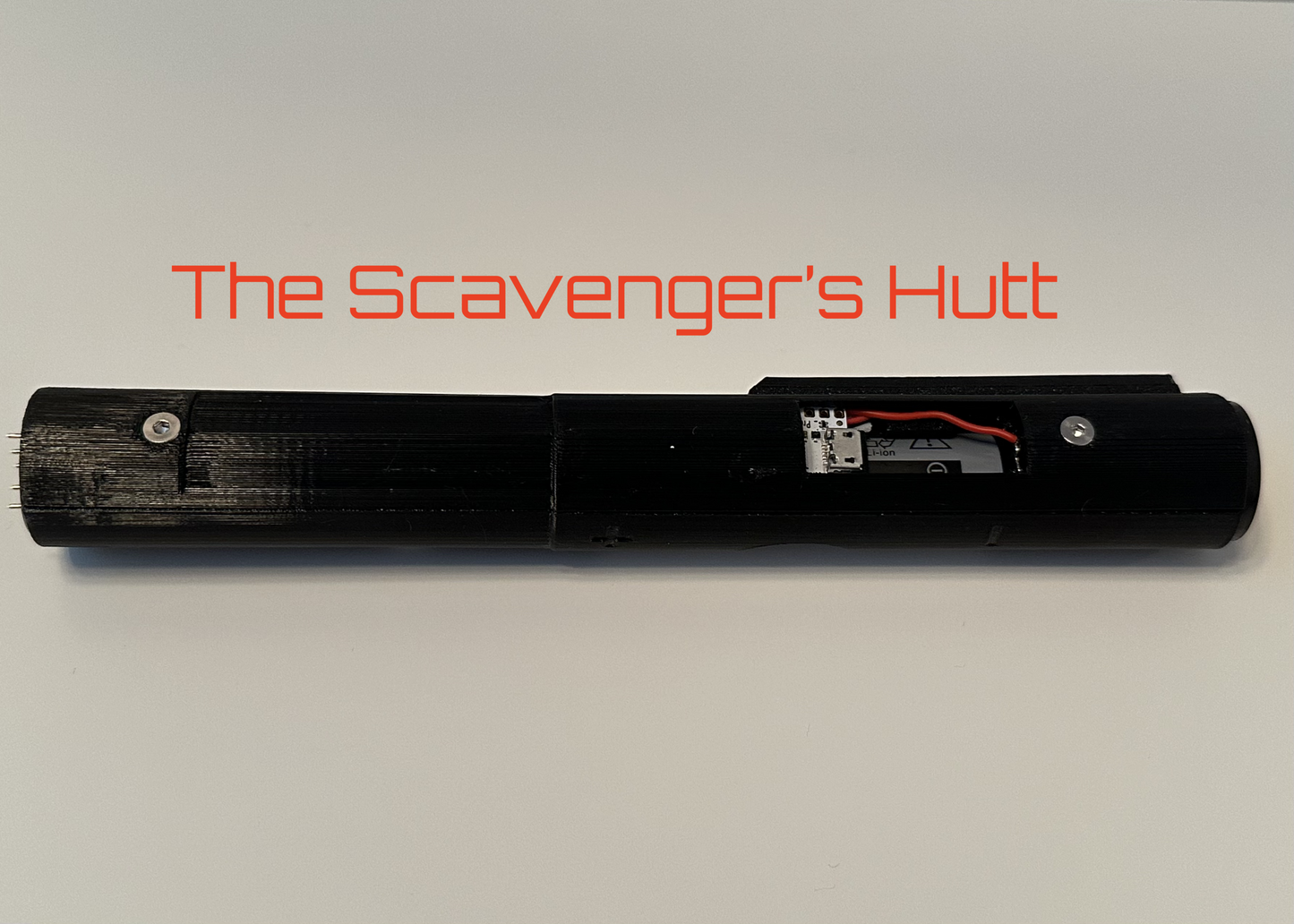

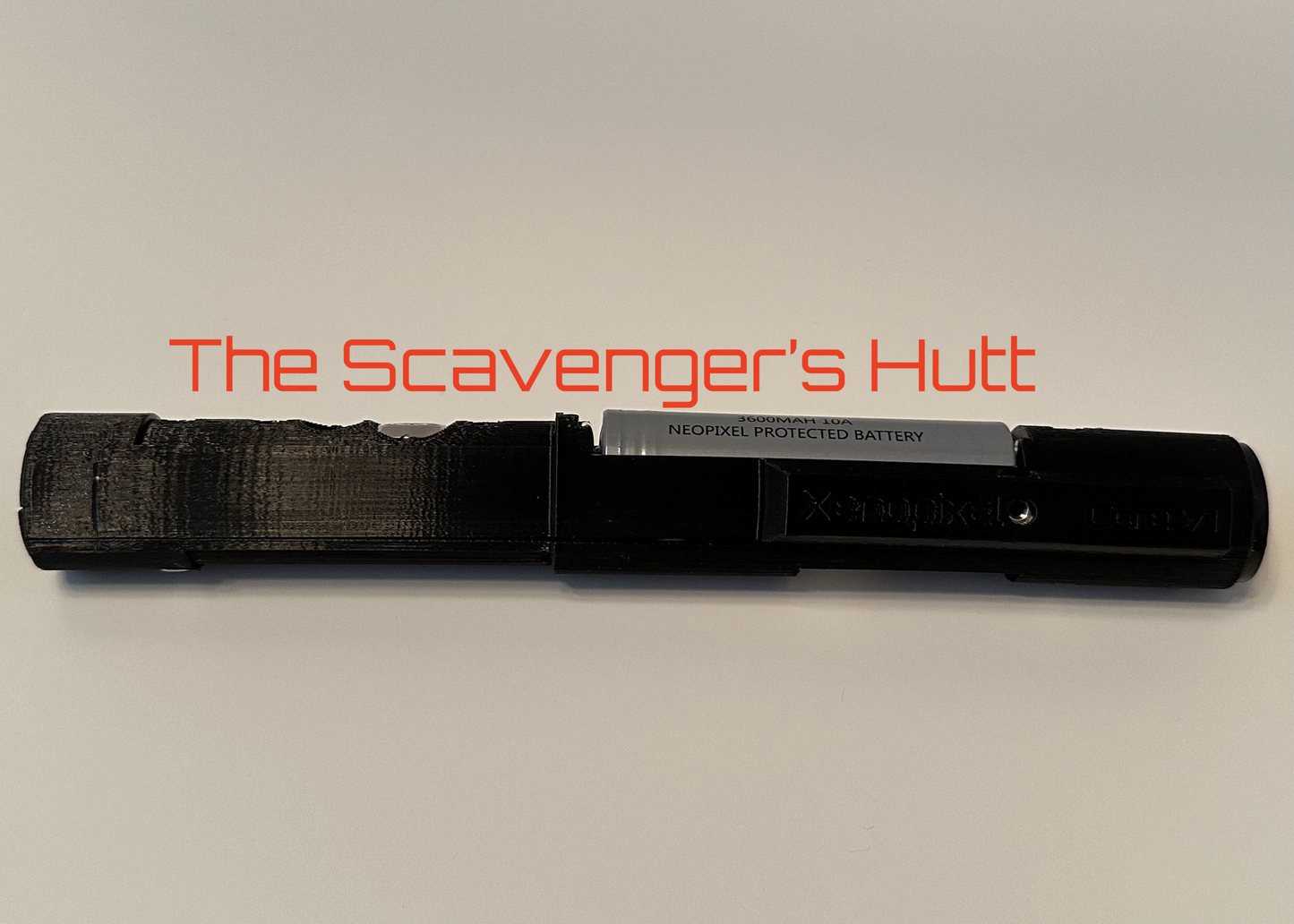

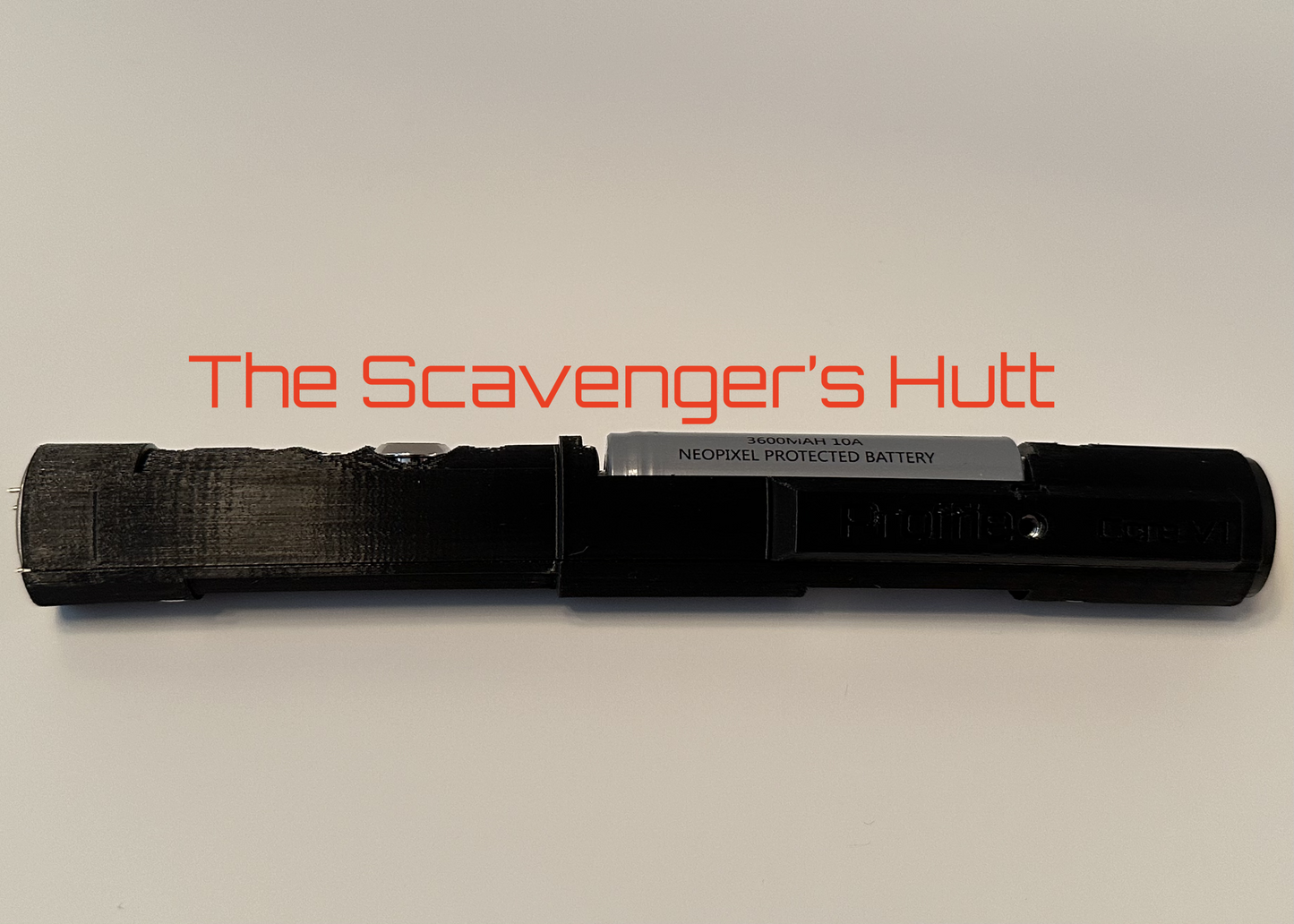

• Electronics Core with User Selected Sound Board

• Rechargeable User Replaceable Battery

• USB-C Charging Cable

• Conversion Kit Assorted Screws and Accessories
  • Scrap Metal Conversion Plate
  • Scrap Metal Conversion Depressor
  • Allen Key
  • Blade Retention screws

Not Included but Required

• Scrap Metal
• Neopixel Blade - Diameter 1 inch - Length 92cm / 36inch

• Screwdriver with Phillips Head #1 Bit

• AC Adapter 5v 1A or less (Using an AC Adapter with higher voltage / amperage can damage the electronics)

Scrap Metal Compatibility

The Scavenger’s Hutt has compiled a list to highlight confirmed compatibility of Scrap Metal Switches. This information has been verified through personal testing and insights provided by customers. Review confirmed compatibility at the following link: https://thescavengershutt.com/pages/scrap-metal-compatibility

Video Demonstrations and Installation Instructions

Demonstration highlighting some of the features enabled by the chassis powered by Xenopixel V3:

Demonstration highlighting a Bleeding Kyber Crystal Blade Effect Powered by Proffie V2.2:

Demonstration highlighting additional lighting features enabled by the Clear Conversion Chassis powered by Proffie V2.2:

Demonstration highlighting additional lighting features enabled by the Clear Conversion Chassis powered by Xenopixel V3:

Installation Instructions:

Product Resources and Manuals:

https://thescavengershutt.com/pages/scrap-metal-neopixel-conversion-chassis-compatible-with-hand-built-lightsabers-manual

Disclaimers:

• Warning! Choking Hazard. This product contains small parts. Keep away from children and pets.
• The chassis is custom designed and is manufactured using additive manufacturing using a PETG material that provides strength and heat resistance. This product has not been tested for dueling and as a result this product should not be used for dueling. The purchaser is responsible for any damage that occurs if they chose to use the product for dueling.
• This product is manufactured using additive manufacturing (3D printing). Due to the manufacturing process the product you receive may look slightly different from the product photos. All products go through quality control and are guaranteed to provide the functionality described in the product description.

• The Scavenger’s Hutt is not responsible for any damage that occurs while modifying Scrap Metal Switch. Please watch the installation instructions in their entirety before purchasing this product.
• This product contains a lithium ion battery. If the battery becomes damaged stop using the device immediately and safely dispose of the battery.
• Do not use the product if the product is damaged.
• Use the product with caution The Scavengers Hutt is not responsible for any damage that may occur while using this product. Use the force responsibly.
